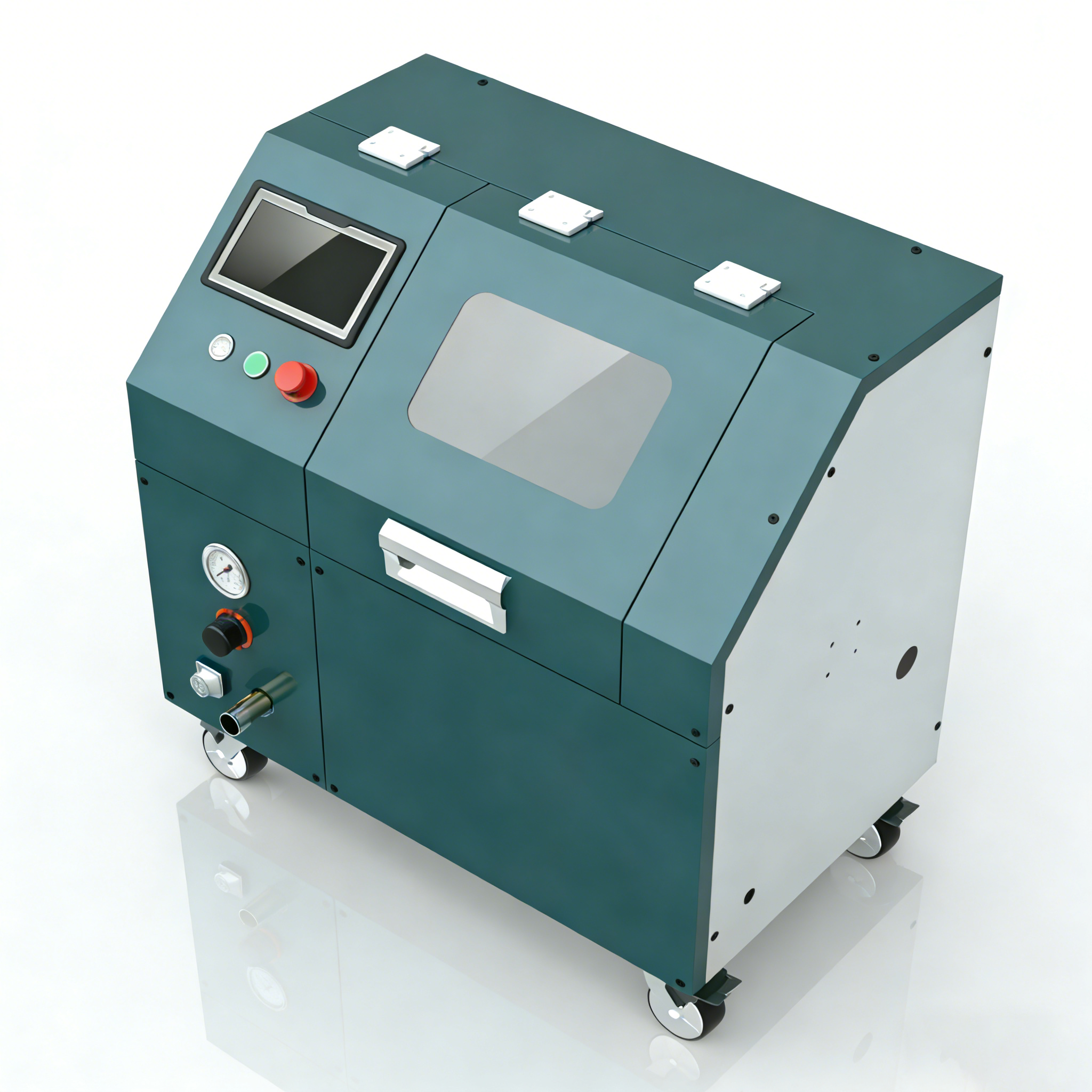

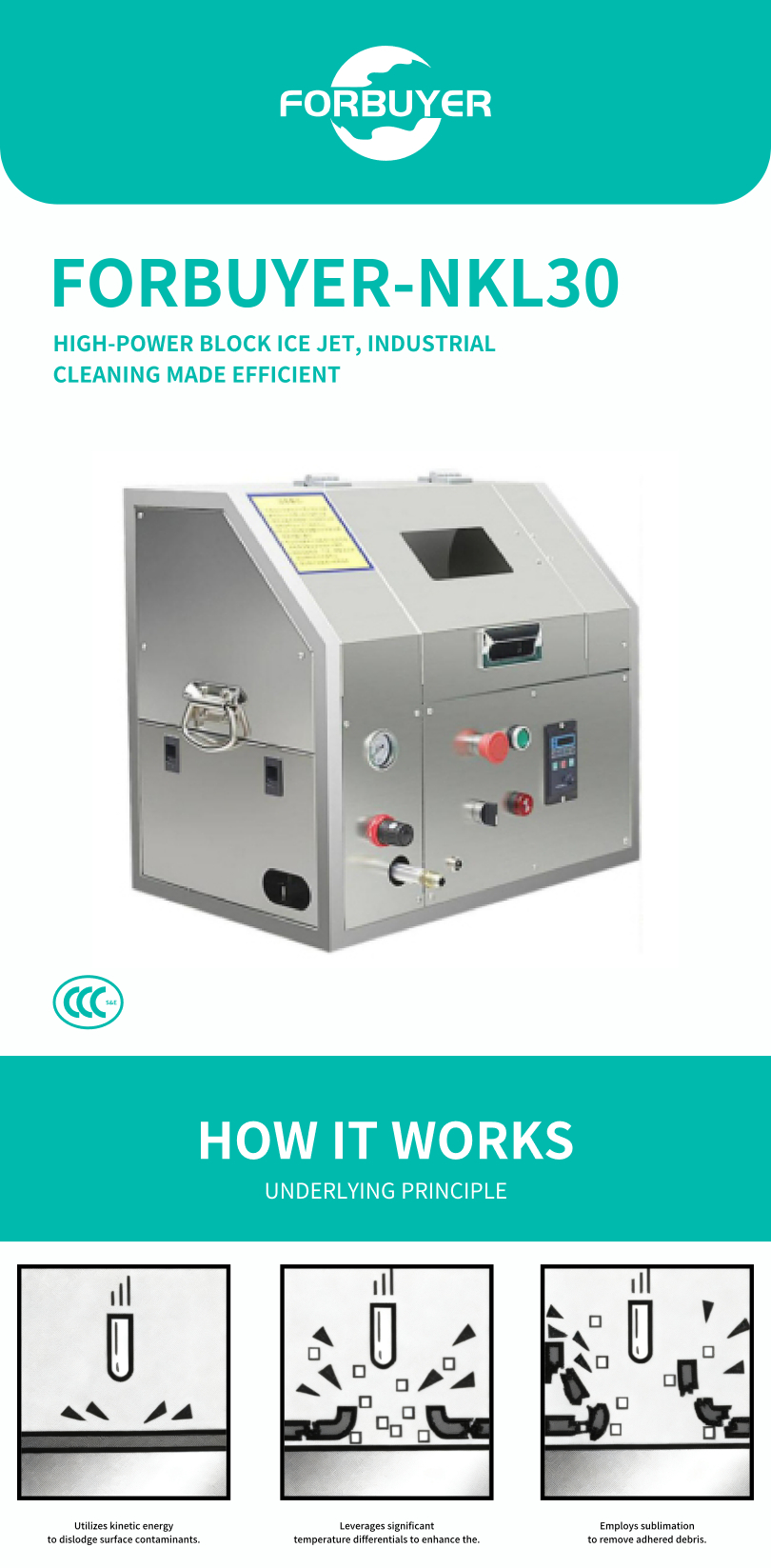

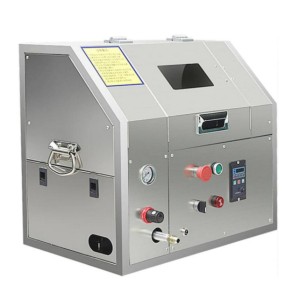

NKL-30

Original model: NK-L30
Compressed Air Flow: 0.5–3.0 m³/min
Model: NEKL (Generation Ⅰ)
Air Supply Pressure: 0.2–1.2 MPa
Dry Ice Injection Rate (Adjustable): 0~1.5 kg/min (user-adjustable)
Dry Ice Hopper Capacity: 5–10 kg (max)
Dry Ice Form: Ice block specification: 250mm×140mm×125mm (5kg)
Power: 400W
Dimensions (L×W×H): 570mm×400mm×510mm
Equipment Weight: 65 kg
Power Supply: AC220V/50–60Hz/3A
Body Material: Full stainless steel
IP Rating: IP55
Net Weight: 50 kg
Includes 1 set of ice

INQUIRY down load to pdf

Product Detail

Product Tags

Pellet-type dry ice blasting machine, block-type dry ice blasting machine, industrial-grade dry ice cleaning system, dry ice blasting equipment manufacturer

Technical Specificatio

Original Model			NKL30
Dry ice specification			5KG block ice (one-time molding)
Startup method			Knob frequency conversion
Ice Output			0–1.5 kg/min (adjustable as needed)
Required Air Pressure			0.2–1.2 MPa
Required air flow			>0.5–3.0 m³/min
Equipment Weight			50kg
Hopper Capacity			10kg (max)
Power			400W
Power Requirements			220VAC/50HZ/3A
Dimensions			570mm400mm510mm

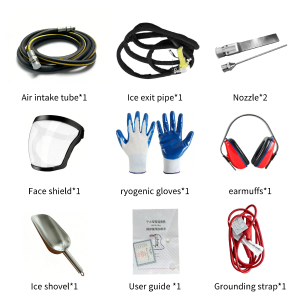

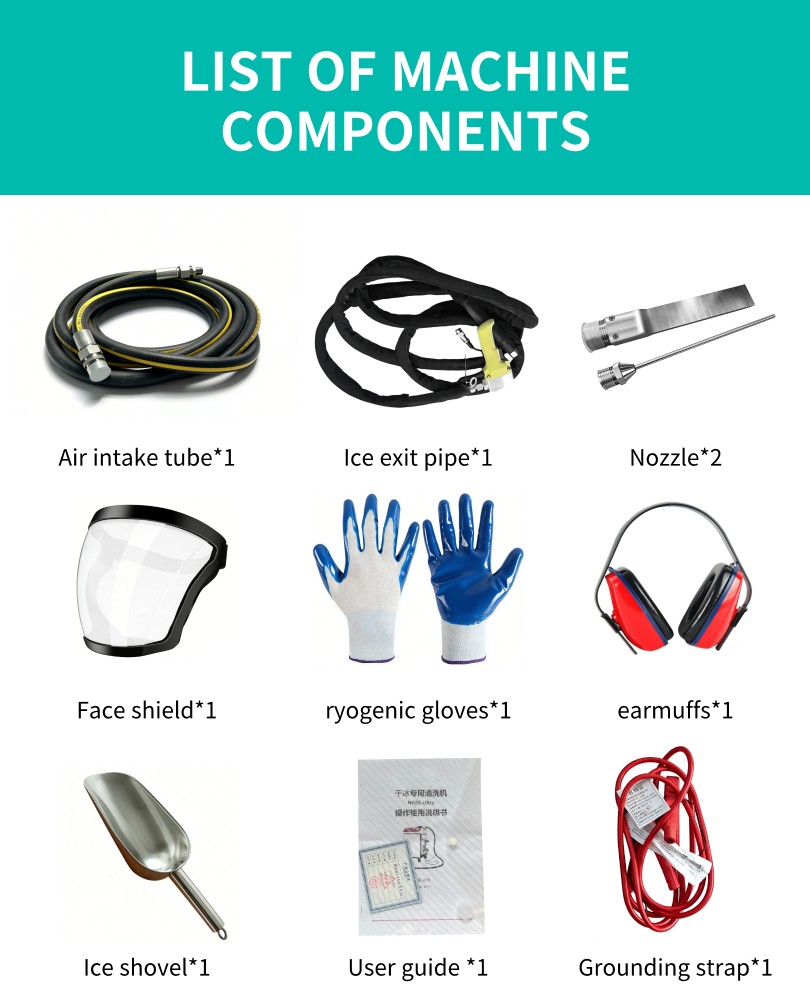

Ice discharge pipe assembly			*1（Compressed Air Hose, 8m x Φ12mm）
Air intake hose and matching connector			*1
Protective equipment			(Noise-canceling headphones, face mask, gloves,)*1
